The Chalkboard

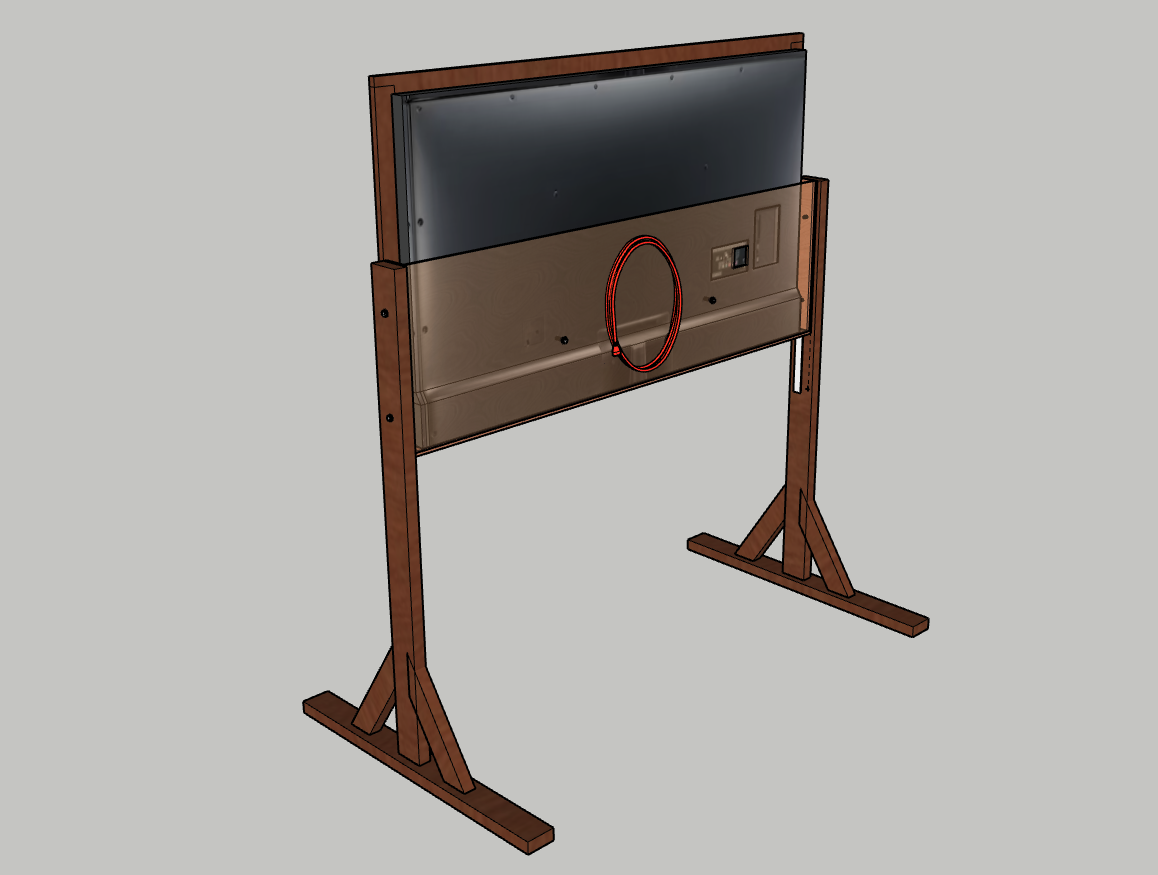

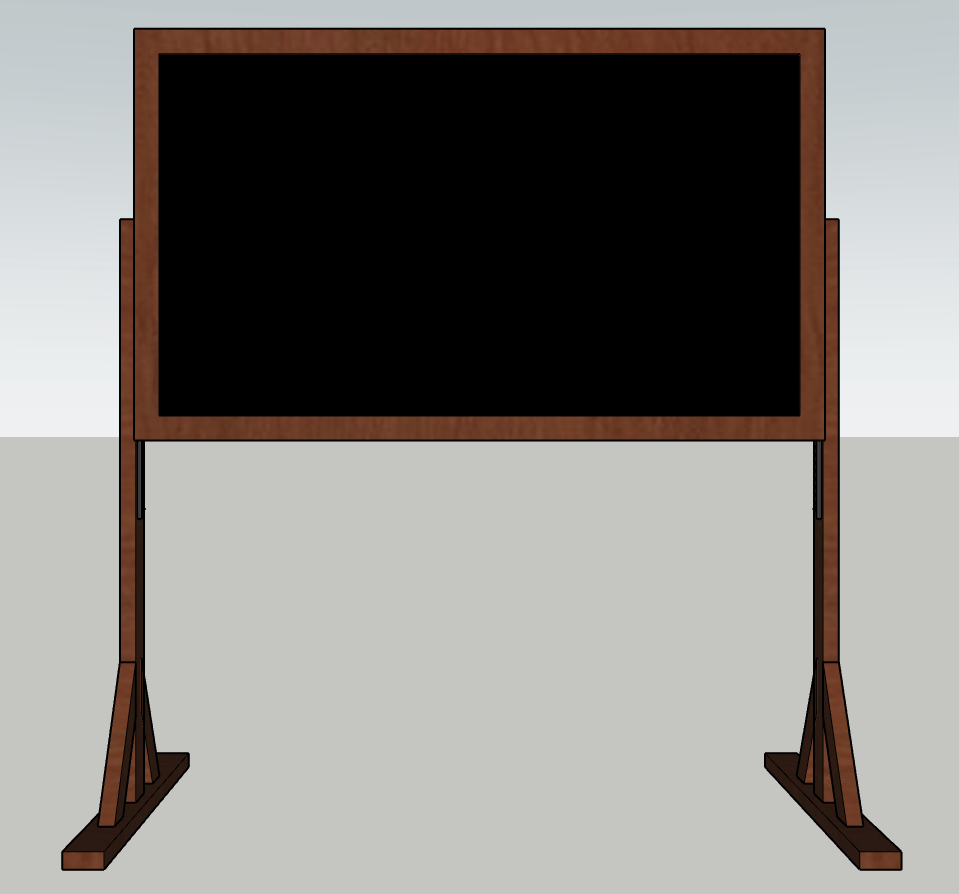

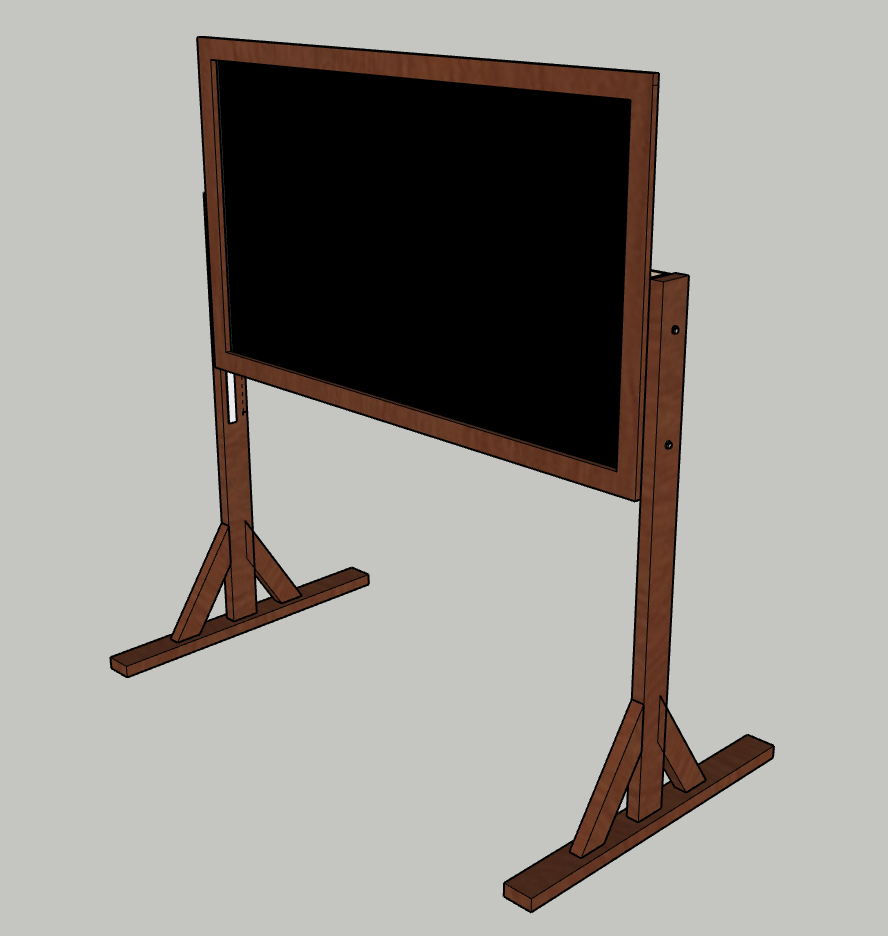

This is a free-standing TV stand.

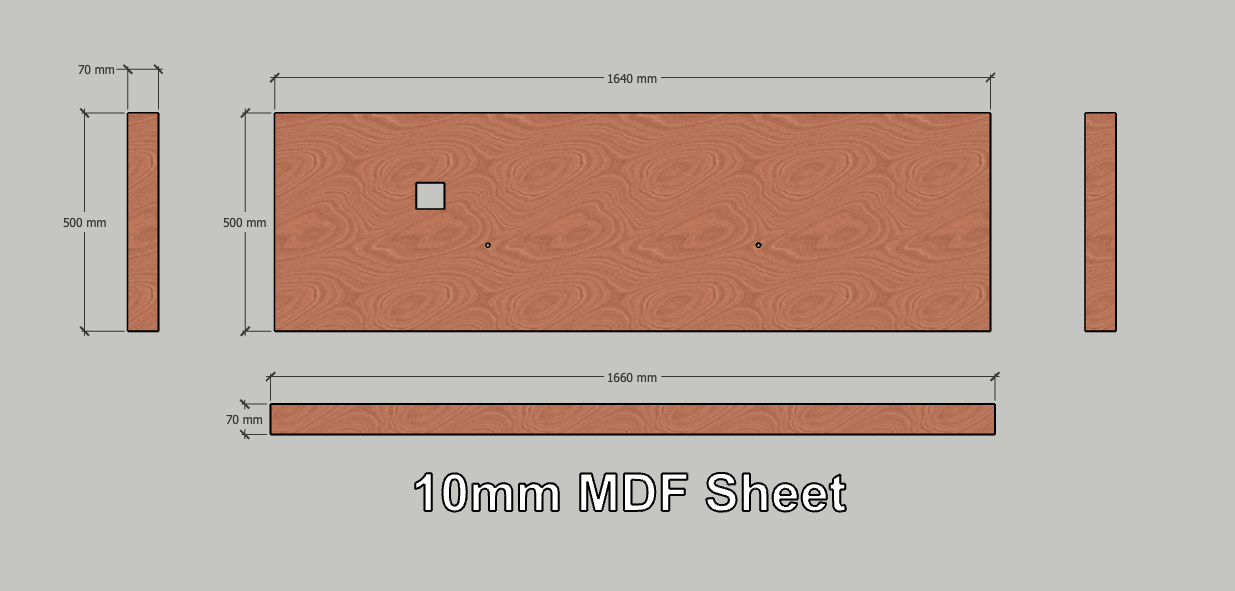

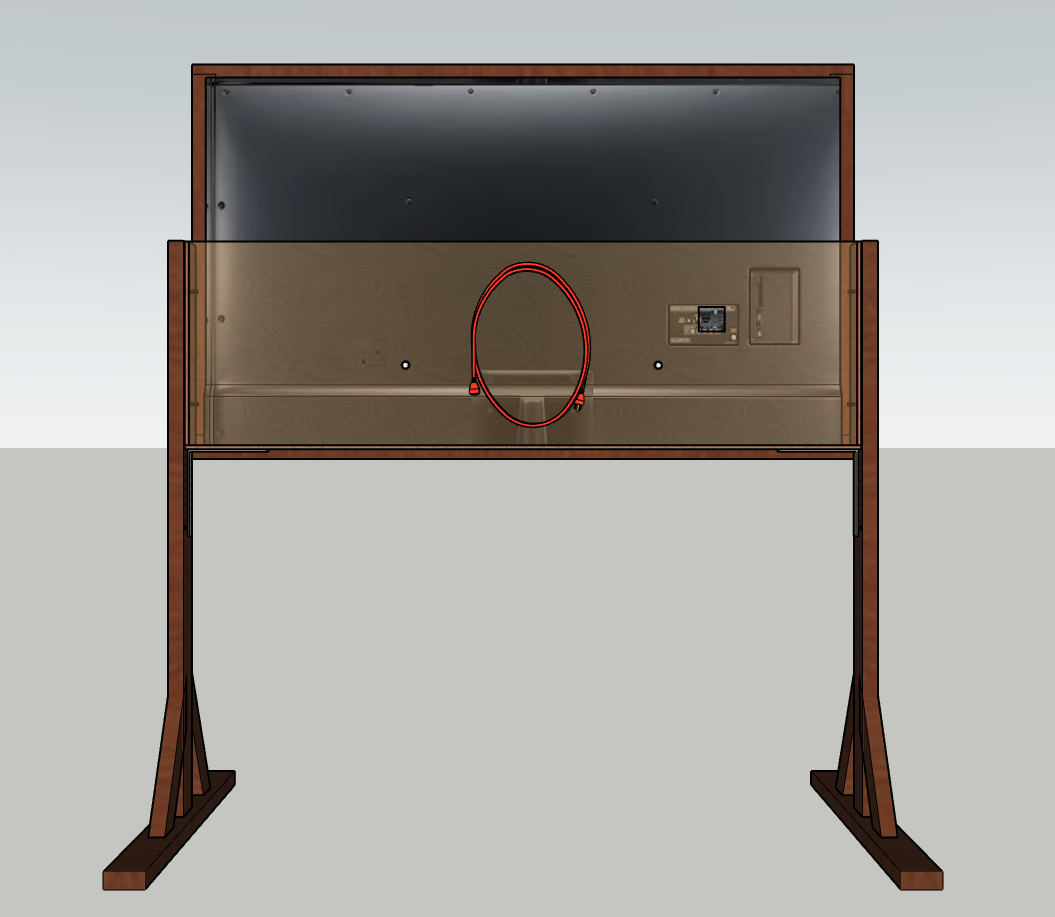

MDF Cradle holds the TV.
TV is bolted directly to the Cradle.
Cradle is bolted to the Legs
Cradle is also supported by L-bracket.
Little hole in cradle for HDMI.
Cradle has space at the side for power to connect directly to an extension cable.
Cable and HDMI run down the back of the left leg.
The sketchup file is scaled correctly for the height of the talent.
Typeface options:
Julia at 1680mm tall with 1200x900mm board.
